DTR MOTORING

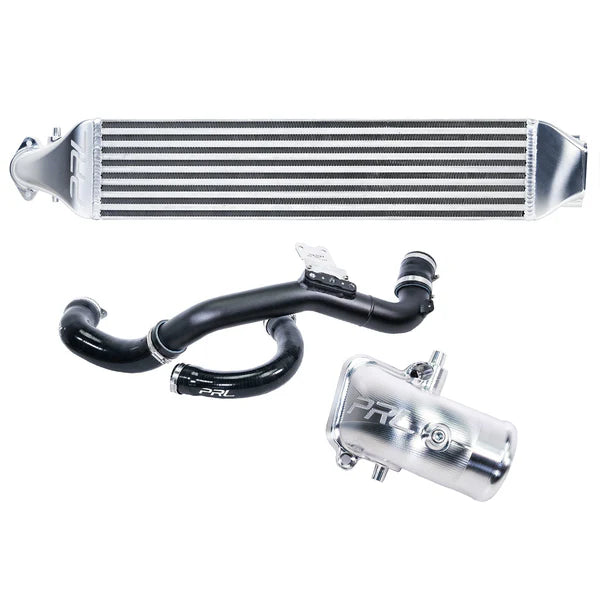

2022+ Honda Civic 1.5T High Volume Intercooler + Charge Pipe Kit

2022+ Honda Civic 1.5T High Volume Intercooler + Charge Pipe Kit

$1,199.00 USD
$1,199.00 USD
Sale Sold out
Shipping calculated at checkout.

Fits all 2022+ Honda Civic 1.5T
Fits all variant models including Si, CVT, 6MT, RHD, International Models, Etc.

Patent Pending

Important Notes:

  • NO ECU CALIBRATION REQUIRED

Emissions:

This part is legal for sale and use on Emissions Controlled Vehicles in 49 states when used in accordance with the manufacturer's application guide because it has a SEMA Certified-Emissions (SC-E) Number:

SC-APG01-0054

Why the Kit?

We have offered these components separately for a while now, but for those who are looking for the whole package, buying each piece separately means that you will have leftover pieces to adapt the intercooler to the factory charge piping. This kit eliminates those redundant parts, simplifying the install process and, more importantly, reducing the overall cost of the upgraded Intercooler bundle!

Technical Notes:

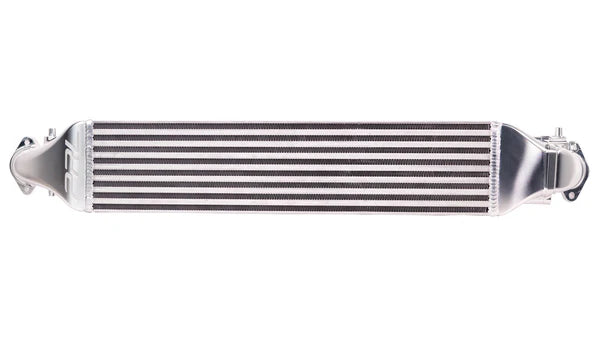

It’s no secret that Honda’s 1.5L turbo Civic is extremely susceptible to heat-soak, especially when retaining the factory intercooler. Excessive heat-soak increases the risk of detonation and causes major power-loss due to high charge air and cylinder temperatures. These issues become even more prevalent with spirited driving and/or increased power outputs. The PRL Motorsports intercooler upgrade decreases charge air temperatures while increasing potential airflow with its dense 550+ horsepower rated (though we have pushed 600+) 26x4.5x5.9” bar-and-plate bar-and-plate core and machined billet aluminum end tanks! This intercooler utilizes factory mounting spots with our embossed end tanks.

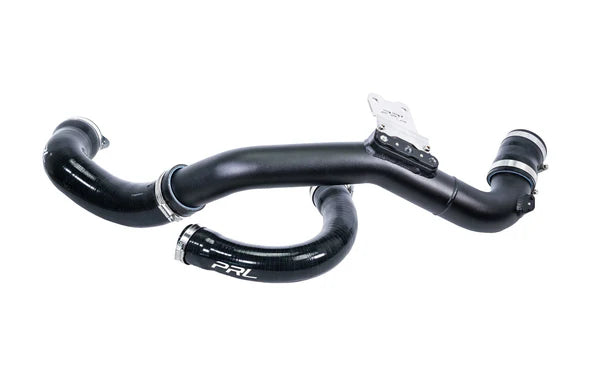

Our charge pipe upgrade kit utilizes a smooth flowing, larger inner diameter cold-side charge pipe (1.25" factory compared to 2.5" piping with the PRL kit) for increased airflow and factory diameter hot-side outlet to aid in turbocharger spool.

Our High Volume Intercooler Outlet promotes laminar airflow by eliminating the bottleneck of the factory intercooler/charge pipe connection and allows for a smooth transition to the inner diameter of our Charge Pipe Upgrade Kit. The High Volume Intercooler Outlet also features a methanol injection bung - this location allows the methanol time and space for proper atomization for consistency throughout the charge air, which is ideal for tuning, safety and cooling.

This kit includes all hardware needed for a seamless install.

Performance Gains:

  • Drastically reduced charge air temperatures
    • Testing showed up to a decrease of 108 degrees (F) when comparing to the factory intercooler
  • Increased efficiency & consistency in power delivery
    • Testing showed up to a 40% increase in cooling efficiency when comparing to the factory intercooler
    • Testing showed up to 9 horsepower gains on a stock vehicle
  • Increased engine safety

Kit Includes:

View full details
