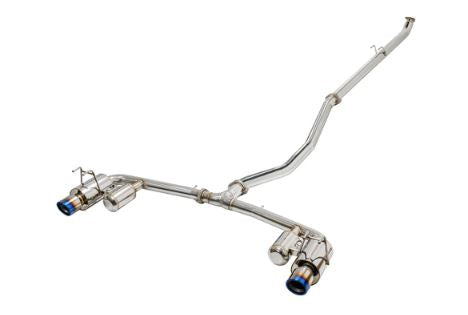

The N1 Evolution Extreme is based on the proven performance basics of the N1 muffler which emphasizes optimum, exhaust efficiency utilizing a straight-thru layout design. Equipped with an internal hybrid silencer uniting power and free flowing characteristics with effective functional sound resonance. A newly adopted muffler tip completes the tail end of the exhaust that serves both purposes of function and form. Constructed with a light weight titanium material rolled and riveted onto a double pipe structure which acts as a diffuser enabling temperature reduction, meanwhile retaining a sporty heat gradation appearance.
PRODUCT FEATURES:
- N1 EvX titanium tips specially designed with clearance to reduce heat transfer
- Top Level quality using full tig-welded SUS304 stainless steel
- Matched and manufactured for select chassis
- A'PEXi intricate designed brackets
- Resonated midpipe structure
- Comfort with optimal performance gains
* Does Not Fit : Honda Civic Si (2022+) / Integra DE4 (2023+)
| Bolt-On |
Yes |
| Part Number |
FE1 - 164KH004 |
| Year |
2022+ |
| Make |
Honda |
| Model |
- Civic Hatchback Sport Touring
- EX-L (*MUST USE Honda OE Hatchback Sport Touring Diffuser*)
|
| Body Style |
FL1 - 4 Door Hatchback |
| Engine |
L15BA (Turbo) |
| Chassis |
FL1 - 4 Door Hatchback |
| Exhaust Type |
N1 Evolution Extreme Muffler (N1-X) |
| Piping Diameter |
3inch to 2.5inch
|
| Tip Diameter |
105mm. x 2 |
| Pieces |
3
|
| Exhaust Tip Style |
Titanium Round- Dual wall rolled, Angle cut (Riveted) |
| Piping Material |
SUS304 Stainless Steel |
| Muffler Material |
SUS304 Stainless Steel |
| Muffler Tip Material |
Titanium |
| Note |
EX-L models needs to run with Honda Civic Hatchback Sport Touring OE Diffuser. Straight clip on to the EX-L models for true exhaust outlets to match up with A'PEXi N1-X exhaust system. |
 |
