PRL INLET PIPE KIT: CIVIC TYPE R 17-21 FK8 (CARBON)

Key Features:

• Largest inlet pipe available for the FK8 platform

• Over 50% increase in airflow volume vs. factory inlet pipe

• Cast aluminum turbo flange transitions smoothly from 64mm ID to 80mm OD carbon tubing

• Maximizes intake system efficiency and improves turbocharger response

• Increases low-end power and boosts turbo spool

• NO ECU calibration required

• ONLY compatible with PRL High Volume Intake System

Construction and Materials:

• Cast 6061 Aluminum Inlet Flange

• Thin-Wall Carbon Fiber Tubing (80mm OD / 78mm ID)

• High-Temp 4-Ply Silicone Couplers

• 304 Stainless Steel Interlocking Worm Clamps

Fitment:

• 2017–2021 Honda Civic Type-R (FK8)

• Fits all variants including RHD and International models

• Compatible with all factory-fitment turbochargers

• ONLY pairs with PRL High Volume Intake System

• DOES NOT fit stock airbox

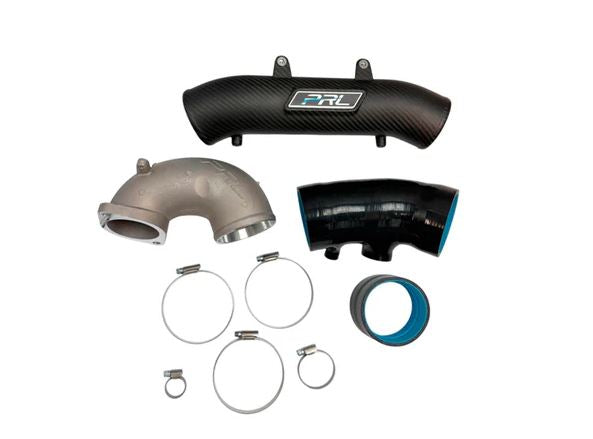

What’s Included:

• (1) Cast Aluminum Inlet Piece

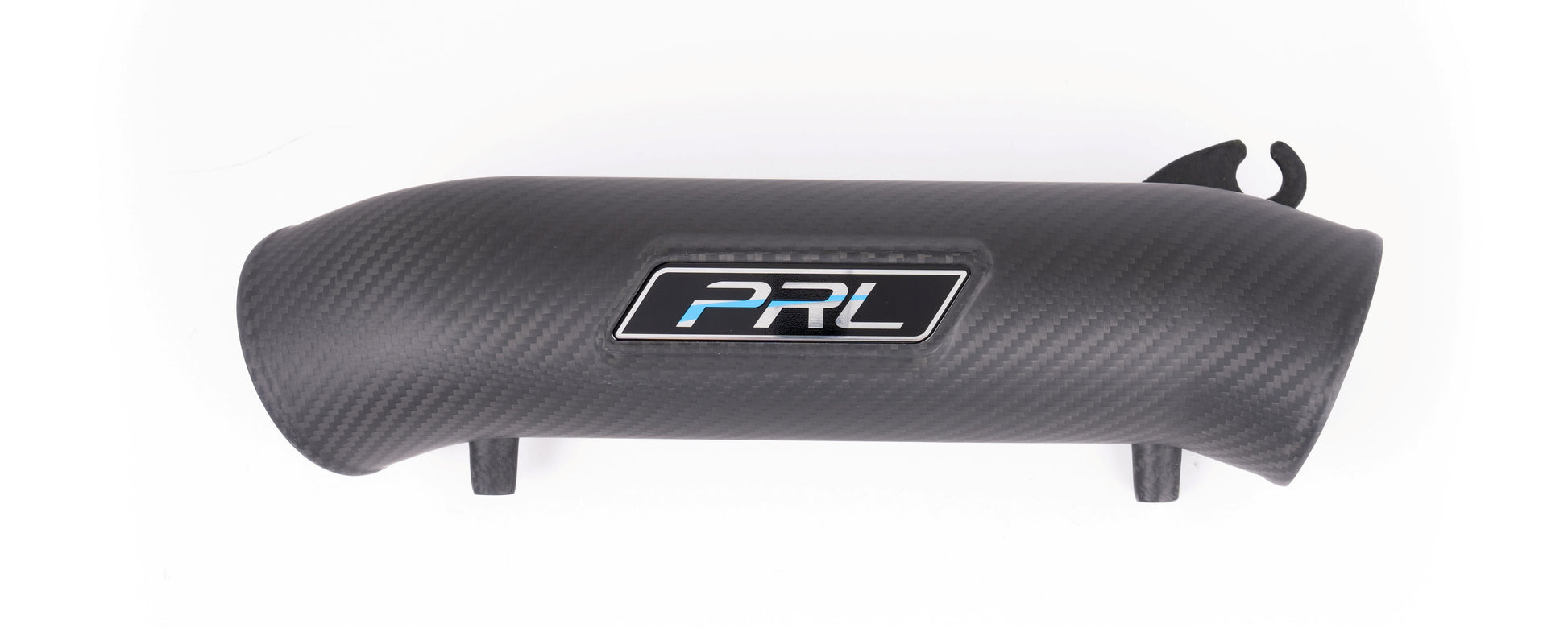

• (1) 80mm OD Carbon Fiber Inlet Pipe

• (2) High-Temp 4-Ply Silicone Couplers

• (6) 304 Stainless Steel Worm Clamps

• Note: HVI customers should reuse the injection-molded EVAP purge fitting included with their intake.
