TOMEI EXPREME-TI TITANIUM EXHAUST: INTEGRA TYPE S DE5 24-25 (TYPE-D)

TOMEI EXPREME-TI TITANIUM EXHAUST: INTEGRA TYPE S DE5 24-25 (TYPE-D)

$1,799.00 USD
$1,890.00 USD $1,799.00 USD
Sale Sold out
Shipping calculated at checkout.
 Detailed Description

MAKER ENGINE MODEL
ACURA K20C DE5 INTEGRA TYPE S

More Image

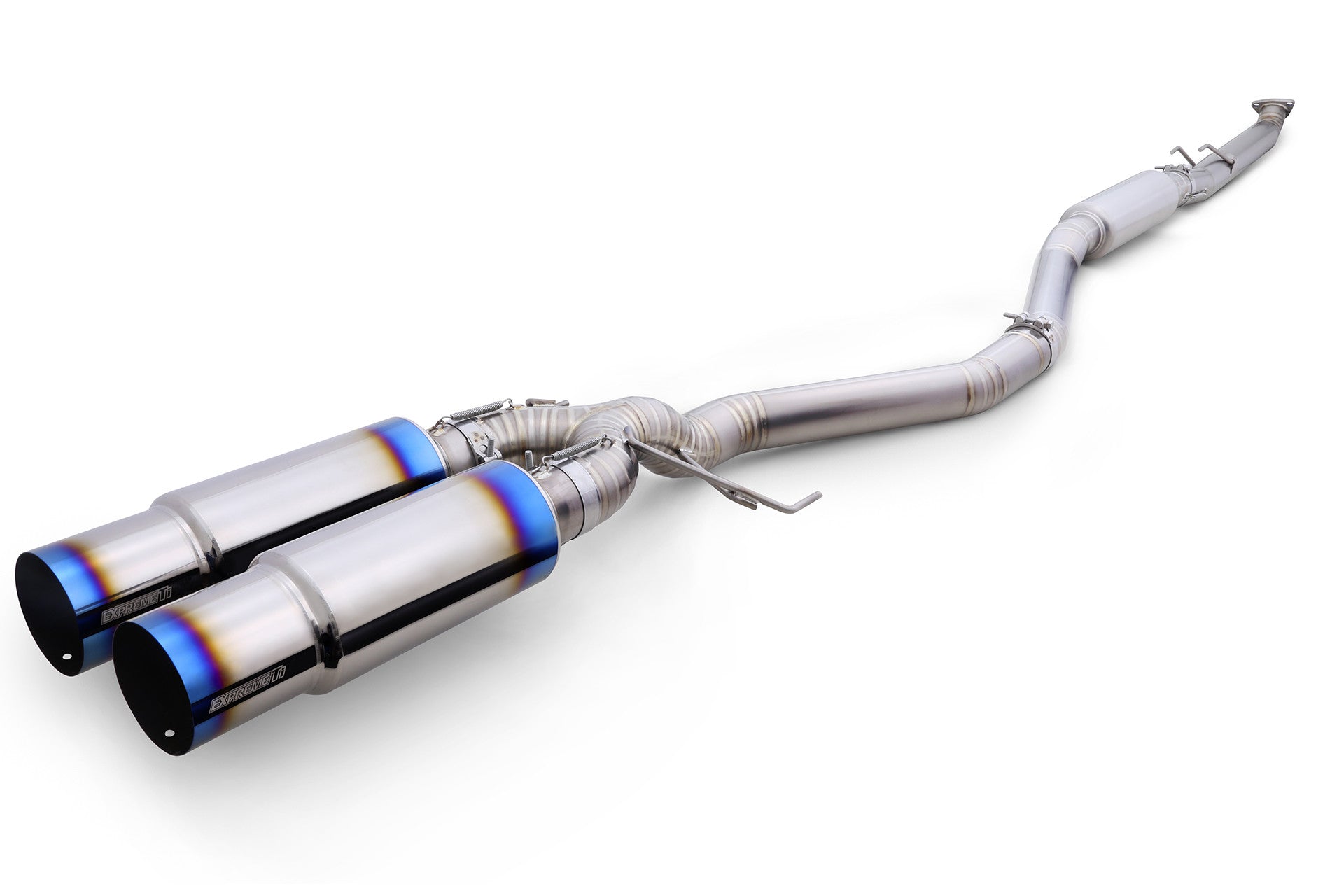

FULL TITANIUM MUFFLER SPECIFICATION

  TOMEI OEM
PART No. TB6090-HN06F -
MATERIAL TITANIUM -
MAIN PIPE DIAMETER 3.2inch [80.5mm ] 2.4inch [60.0mm]
MAIN PIPE THICKNESS 1.0mm -
SUB SILENCER DIAMETER 4.7inch [118.0mm] 4.88inch [124.0 mm]
SUB SILENCER THICKNESS 1.0mm -
SILENCER DIAMETER - -
SILENCER THICKNESS - -
EXIT DIAMETER 4.5inch [115.0mm)] 3.3inch x 2 / 4.33inch x 1
[86.0mm x 2 / 110.0mm x 1 ]
EXIT THICKNESS 1.0mm -
FLANGE THICKNESS 8.0mm 6.0mm
WEIGHT 26.7lbs [12.1kg] 42.2lbs [19.1kg]

Only muffler installed.

TOMEI
With
Sound Reducer
Ver.2
 91db
With
Sound Reducer

 98db
Without
Sound Reducer

 107db

This kit includes all the components necessary for installation including the bolts and nuts. Bolt Smooth Paste is also included to help prevent the bolts becoming seized under heat.

TYPE S
